Custom CNC-Machined Robotic Tool Holders

Built with ±0.01 mm accuracy, CMM-validated geometry, ISO-controlled machining, GD&T-based inspection, and maintained 98% consistent delivery performance.

Talk with Experts
Custom CNC-Machined Robotic Tool Holders Featured Image
Home Products EOAT Parts
Overview

Precision High-Stability
 Tool Holder Production

Our robotic tool holders ensure stable tool mounting on robot wrists, delivering precise alignment, dependable stiffness, and repeatable positioning supported by CMM verification and ±0.01 mm machining accuracy for automation systems.

  • ±0.01 mm alignment for stable engagement
  • ISO-validated machining ensures repeatable fit
  • 5-axis milling allows complex mounting faces
  • ±0.005 mm dowel and bore precision
  • 98% on-time delivery for robot tooling
Request A Quote

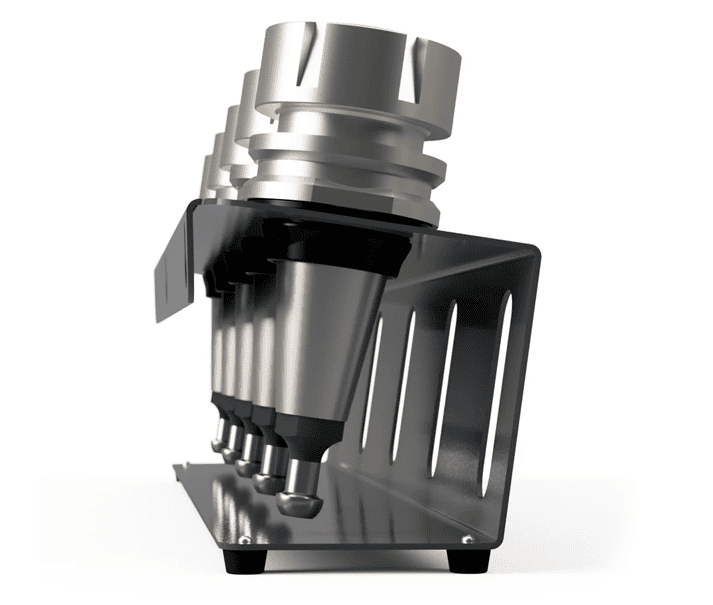

Product Intro Image
Specs

Technical Specifications

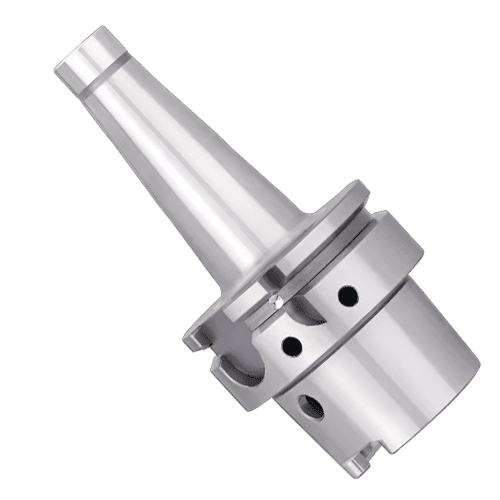

Product Specs Image
Material Alloy Case Hardened Steel
Process  CNC Turning, Precision Grinding
Surface Finish Fine Ground / High Polish
Tolerance  ±0.003 mm (Taper accuracy AT3)
Weight  1.2kg
Application EOAT Parts
Highlights

Why Choose This Robotics Component

  • Stable Tooling Featured Image

    Stable Tooling

    Each tool holder is engineered for high rigidity, delivering consistent mounting stability even during rapid or high-load robotic movements.

  • Material Options Featured Image

    Material Options

    Aluminum 7075 or stainless steel options enable optimized weight-to-strength ratios across collaborative, industrial, and heavy-duty robots.

  • Precision Verified Featured Image

    Precision Verified

    Critical faces, holes, and dowel interfaces undergo CMM validation to guarantee repeatable positioning and consistent robotic tool engagement.

  • Reliable Delivery Featured Image

    Reliable Delivery

    Our ISO-aligned workflow and structured inspections support a dependable 98% delivery rate for robotic tool holder orders.

Composition

Component Material & Finish

Products

Related Components

FAQs

Custom CNC-Machined Robotic Tool Holders FAQs

Have specific technical queries regarding your Tool Holders? Reach our engineering team at info@robotcncparts.com.

Request A Quote
What precision levels are achievable?
Functional faces hold ±0.01 mm, while critical dowel and bore features can achieve ±0.005 mm for stable robotic tool engagement.
Can custom robotic tool holder designs remain confidential?
Yes, we secure all models and drawings under NDA protocols and limit handling to authorized engineering personnel only.
How do you confirm the tool holder's geometric accuracy?
CMM inspection checks all mating surfaces, dowel holes, and bores to ensure alignment within ±0.01 mm and critical features within ±0.005 mm.
What materials are ideal for robotic tool holders?
Aluminum 7075 offers a lightweight structure, while stainless or alloy steel provides added strength for heavy tooling.
Do you provide protective surface finishes?
We offer anodizing, hard plating, and precision-ground surfaces to enhance wear resistance and maintain mounting accuracy.
How consistent is your delivery performance?
Our ISO-controlled production system maintains a 98% on-time delivery rate for robotic tooling components.
