Custom-Machined Reliable Fixture Components

Manufactured with ±0.01 mm accuracy, CMM-verified, GD&T-compliant, ISO-aligned, and supported by 98% delivery reliability.

Talk with Experts
Custom-Machined Reliable Fixture Components Featured Image
Home Products EOAT Parts
Overview

Precision Engineering
 Fixture Component Solutions

Our fixture components ensure precise part positioning and stability during machining, assembly, or inspection, providing repeatable alignment verified via CMM and maintaining ±0.01 mm accuracy for reliable industrial applications.

  • ±0.01 mm positioning for consistent assembly
  • ISO-validated processes ensure repeatable fixture geometry
  • 98% on-time delivery supports production timelines
  • ±0.005 mm critical hole and pin alignment
  • 5-axis CNC machining enables complex part profiles
Request A Quote

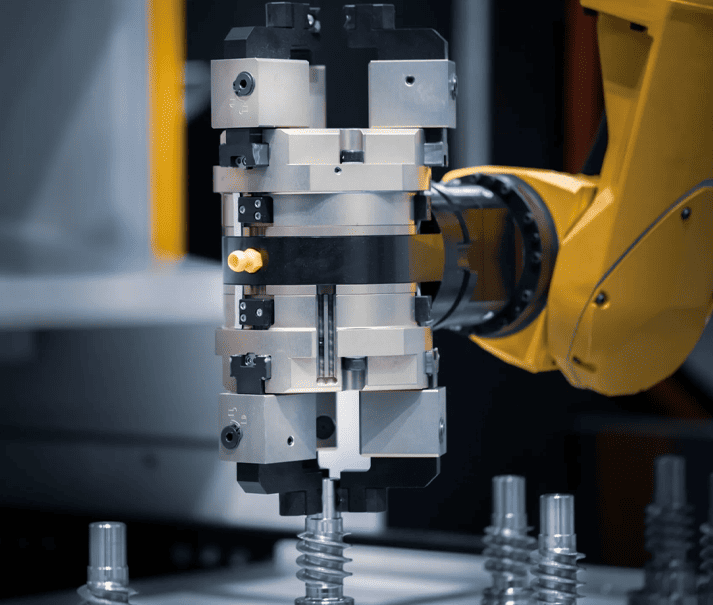

Product Intro Image
Specs

Technical Specifications

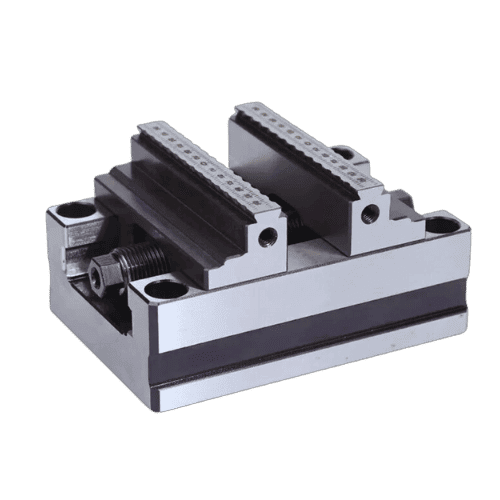

Product Specs Image
Material Hardened Tool Steel
Process Precision Grinding, CNC Milling
Surface Finish Black Oxide & Ground Finish
Tolerance  ±0.005 mm
Weight 2.5kg
Application EOAT Parts
Highlights

Why Choose This Robotics Component

  • Accurate Positioning Featured Image

    Accurate Positioning

    Fixture components are machined to maintain precise alignment, ensuring repeatable part placement during production or inspection.

  • Durable Finishes Featured Image

    Durable Finishes

    Aluminum or steel with anodized or plated surfaces ensures long-term durability and corrosion resistance in industrial environments.

  • Complex Capabilities Featured Image

    Complex Capabilities

    5-axis CNC machining enables custom designs and multi-face features to accommodate specialized tooling and robotic setups.

  • On-Time Delivery Featured Image

    On-Time Delivery

    ISO-aligned processes and in-process inspections sustain a 98% on-time delivery rate for production and replacement fixture components.

Composition

Component Material & Finish

Products

Related Components

FAQs

Custom-Machined Reliable Fixture Components FAQs

Have specific technical queries regarding your Fixture Components? Reach our engineering team at info@robotcncparts.com.

Request A Quote
Can proprietary fixture designs be protected?
Yes. All drawings and CAD files are secured under NDA protocols and controlled access.
Which materials are suitable for heavy-duty fixture components?
Steel 4140 or tool steel is ideal for high-strength requirements, while aluminum 6061-T6 offers lightweight stability.
How is fixture component accuracy maintained?
CMM inspection verifies holes, pins, and surfaces to ensure ±0.01 mm positioning accuracy and ±0.005 mm critical alignment.
Are surface treatments applied for durability?
Anodizing, plating, and precision grinding improve corrosion resistance, surface wear, and long-term fixture reliability.
What tolerances can be achieved?
Functional features hold ±0.01 mm, with ±0.005 mm achievable for critical holes, pins, or mounting interfaces.
How dependable is delivery performance?
Our ISO-aligned workflows maintain a 98% on-time delivery rate for fixture components.
